Ceiling Mount Twin 9000
The Ceiling Mount Twin introduces a dual-evaporator design to maximize cooling efficiency while remaining virtually invisible in the cellar.
Features
Larger Cooling Capacity
Dual Evaporators
No Ducting Required
Excellent Efficiency
Flare Fittings for Easy Installation
Duramax Coils
Standard and 24V Thermostat Options
Pump System to Remove Excess Condensation
Allows for Maximum Racking Space
Grill of the Unit come in Durable Black Powder-Coated Finish (can be painted to match the cellar)
Product Specifications
Cellar Size
Approx. 3000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
@85°F condenser intake: 8500
Dimensions
Evaporators: 35.75”L x 14.5”W x 12.75”H
110V Condenser: 16.08”L x 16.23”W x 12.61”H
220V H.E. Condenser: 31.18”L x 10.75”W x 21.18”H
Drain Line
1/4″ ID Clear Plastic Tubing
Manuals
Ceiling Mount Twin Series Specs
Ceiling Mount Twin Owner’s Manual
Ceiling Mount 24V Conversion Owner’s Manual
IMPORTANT: Warranty Information
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
The checklist may either be submitted online or you can download and email the checklist to warranty@whisperkool.com
The Ceiling Mount Twin introduces a dual-evaporator design to maximize cooling efficiency while remaining virtually invisible in the cellar.
Features
Larger Cooling Capacity
Dual Evaporators
No Ducting Required
Excellent Efficiency
Flare Fittings for Easy Installation
Duramax Coils
Standard and 24V Thermostat Options
Pump System to Remove Excess Condensation
Allows for Maximum Racking Space
Grill of the Unit come in Durable Black Powder-Coated Finish (can be painted to match the cellar)
Product Specifications
Cellar Size
Approx. 3000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
@85°F condenser intake: 8500
Dimensions
Evaporators: 35.75”L x 14.5”W x 12.75”H
110V Condenser: 16.08”L x 16.23”W x 12.61”H
220V H.E. Condenser: 31.18”L x 10.75”W x 21.18”H
Drain Line
1/4″ ID Clear Plastic Tubing
Manuals
Ceiling Mount Twin Series Specs
Ceiling Mount Twin Owner’s Manual
Ceiling Mount 24V Conversion Owner’s Manual
IMPORTANT: Warranty Information
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
The checklist may either be submitted online or you can download and email the checklist to warranty@whisperkool.com
The Ceiling Mount Twin introduces a dual-evaporator design to maximize cooling efficiency while remaining virtually invisible in the cellar.
Features
Larger Cooling Capacity
Dual Evaporators
No Ducting Required
Excellent Efficiency
Flare Fittings for Easy Installation
Duramax Coils
Standard and 24V Thermostat Options
Pump System to Remove Excess Condensation
Allows for Maximum Racking Space
Grill of the Unit come in Durable Black Powder-Coated Finish (can be painted to match the cellar)
Product Specifications
Cellar Size
Approx. 3000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
@85°F condenser intake: 8500
Dimensions
Evaporators: 35.75”L x 14.5”W x 12.75”H
110V Condenser: 16.08”L x 16.23”W x 12.61”H
220V H.E. Condenser: 31.18”L x 10.75”W x 21.18”H
Drain Line
1/4″ ID Clear Plastic Tubing
Manuals
Ceiling Mount Twin Series Specs
Ceiling Mount Twin Owner’s Manual
Ceiling Mount 24V Conversion Owner’s Manual
IMPORTANT: Warranty Information
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
The checklist may either be submitted online or you can download and email the checklist to warranty@whisperkool.com
TOUCH DISPLAY
The KDT Digital Touch Display can be installed up to 50ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.
BOTTLE PROBE
The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stores in the cellar than measuring the ambient cellar air.

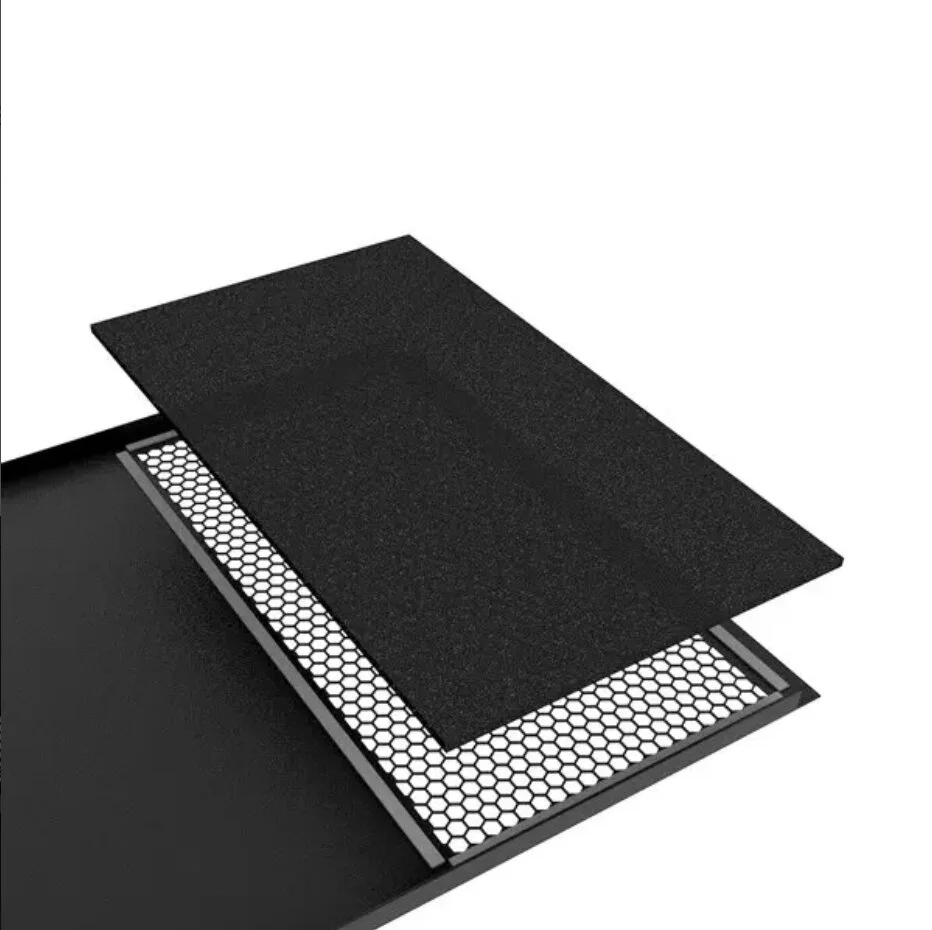

AIR FILTER
We have added an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up or installation of wine racks.
LINESET PORTS
The electrical wiring, bottle probe wiring, and the lineset are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, flare fittings will now be utilized so that there is no brazing needed in the field.
HIGH-EFFICIENCY CONDENSER
This 220V system is a significantly more energy-efficient system, utilizing 50% less energy, saving on operation cost. It also allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120°F).
